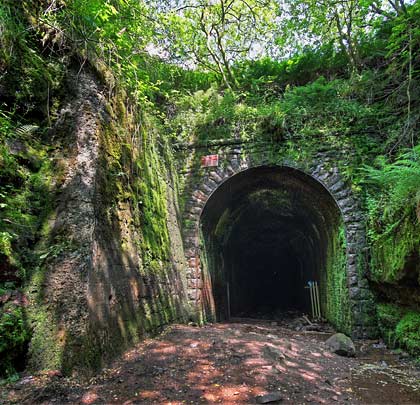

![The masonry-built south portal - what there is of it - is wedged into the end of a short vertically-sided rock cutting.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image1-207.jpg)
![For much of its length, the tunnel - curving to the east throughout - features a masonry arch springing off shelves cut into the rock.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image2-207.jpg)
![Built refuges have been inserted into the sidewalls.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image3-207.jpg)
![A few short lengths of bullhead rail can still be found in the darkness.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image4-206.jpg)
![There has been some localised erosion of the rock face but generally the structure is in a fair condition.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image5-205.jpg)
![Towards the middle of the tunnel, lengths of sidewall have been built which taper out at the top.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image6-200.jpg)
![The sidewalls have been inserted as and when a need was identified, either in stone or brick.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image7-190.jpg)
![The built-sidewalls also include refuges for the platelayers.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image8-168.jpg)
![Some sections of lining are only two bricks thick so they are not providing support, acting only to prevent debris falling onto the track.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image9-144.jpg)
![Light entices explorers towards the north of the tunnel.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image10-110.jpg)
![Although both approaches are flooded and some water penetrates the bore itself, conditions inside are generally dry.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image11-91.jpg)
![Close to the north portal, a full masonry lining was required.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image12-66.jpg)
![The portal here is larger as the cutting sides are more gently graded.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image13-51.jpg)
![A Sixties view of Torpantau Station, looking towards the tunnel which is hidden in the trees at the extreme right of the picture.](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image14-39.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image1-207.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image2-207.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image3-207.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image4-206.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image5-205.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image6-200.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image7-190.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image8-168.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image9-144.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image10-110.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image11-91.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image12-66.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image13-51.jpg)
![](http://www.forgottenrelics.org/wp-content/uploads/2023/03/image14-39.jpg)
Torpantau – also known as Beacons or Beacon Summit Tunnel – claimed the record for the highest tunnel on the UK’s standard gauge network – 1,313 feet above sea level. Reached by a three-mile climb from the south at 1:47 and 1:55, trains passed through it curving sharply to the right on a radius of around 20 chains before emerging onto the notorious Seven Mile Bank, a falling gradient of 1:37 towards Brecon. The tunnel opened in 1863 although construction work had finished the previous year.
The Brecon & Merthyr Junction Railway (B&MJR) gained the unfortunate nickname of the “Breakneck and Murder Railway” due to the number of accidents it suffered which, thanks to those steep inclines, were often severe. Neither was its reputation done any favours by the slowness of its trains. By the time the section through the tunnel closed on 4th May 1964, the line was only carrying freight. Passengers services across the B&MJR system has ended by January 1963.
Torpantau Tunnel is 666 yards in length and features a masonry arch springing either off shelves cut high into the rock face or lengths of brick or stone sidewall which were added incrementally over time as the need arose. Refuges are incorporated throughout.
The south portal is masonry-built and wedged into the end of a vertically-sided cutting, the west face of which is retained by a wing wall for a short distance. The north portal (actually ESE-facing) is a larger stone structure, projecting out into the cutting which has more gently-graded sides.
Though generally in reasonable condition, some small falls of loose rock have occurred, accumulating on the solum, and a stream flows through the tunnel resulting in both approach cuttings being waterlogged.
The narrow-gauge Brecon Mountain Railway has occupied the trackbed south of Torpantau since 1980 and asserts the long-term aspiration of extending its operation northwards through the tunnel.
(George Causley’s photo, taken from Geograph, is used under this
Creative Commons licence.)
